معلومات تفصيلية |
|||
| لون: | أخضر ، رمادي ، أزرق أو حسب الطلب | سماكة: | 2mm/3mm |
|---|---|---|---|
| مادة: | مطاط النتريل | مقاومة السطح: | 10e6-10e9 أوم |
| تحت مقاومة الطبقة: | 10e3-10e6 أوم | مقاس: | 1*10M; 1 * 10 م ؛ 0.6*10M; 0.6 * 10 م ؛ 1.2*10M per roll 1.2 * |
| نموذج: | HZ-30617 | الحجم الطبيعي: | 1m*10m; 1 م * 10 م ؛ 1.2m*10m 1.2 م * 10 م |
| سطح: | مات/لامع | مقاومة الحجم: | 10e7-10e10 أوم*سم |
| الشحنة الإلكتروستاتيكية الاحتكاك: | <100v (السطح) ، <50v (طبقة موصلة) | طبقة تبديد ثابت: | مقاومة السطح 107-109OHM |
| الطبقة الموصلة: | مقاومة السطح ≤106ohm | خدمة المعالجة: | قطع |
| تخصيص اللون: | متاح مع العينة الخاصة بك | ||
| إبراز: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm |
||
منتوج وصف

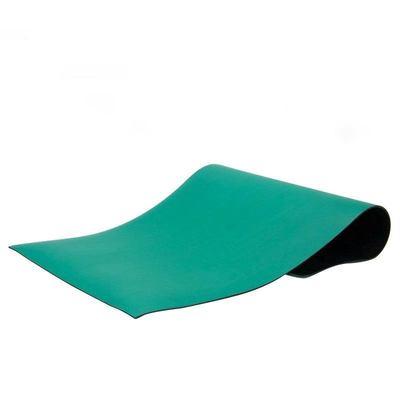

HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, along with rigid ESD table mats. These static control products serve the high-tech industry with reliable electrostatic discharge protection.
Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top layer and black conductive bottom layer. Vinyl table mats are ideal for general electronics assembly, available in both two-layer and single-layer homogeneous materials.

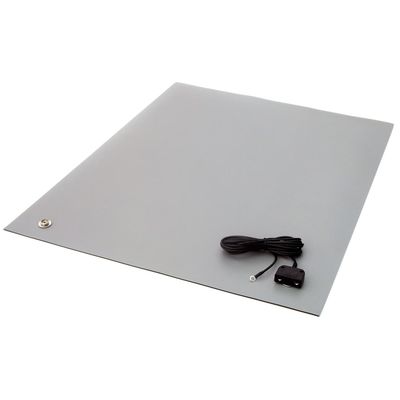

Both rubber and vinyl ESD mats are available in rolls or as complete work surface mat kits including ground snaps and common point grounds. Custom sizes are available upon request to meet specific ESD protection requirements.
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Sizes | 1m × 10m; 1.2m × 10m |
| Available Colors | Green/Grey/Blue |
| Surface Finish | Matt/Glossy |
| Surface Resistance | ≤106ohm |
| Volume Resistance | 107-1010 ohm·cm |
- Static Dissipation Layer: Surface resistance 107-109ohm
- Friction Electrostatic Charge: <100V
- Conductive Layer: Surface resistance ≤106ohm
- Friction Electrostatic Charge: <50V
- Volume Resistance: 107-1010 ohm·cm
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology, with continuous upgrades to enhance security features for various ESD applications.
Our durable products incorporate precision technology, supported by a dedicated team that constantly evaluates and improves our manufacturing processes for optimal static control solutions.
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) include sensitive elements that can be destroyed or damaged when exposed to excessive current or impact energy. These typically include semi-conducting components and thick- and thin-film construction elements, which are often damaged through human handling.
Humans can accumulate several thousand volts of static charge simply by walking. While discharges become noticeable at 2000-3000V, many ESD components can be damaged at much lower levels. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of effective ESD protection and quality assurance.
Beyond our Anti-Static ESD Workstations, we offer a complete range of static control solutions including ESD Chairs, Cleaning Products, Clothing, Footwear, Flooring, Packaging, Personal Grounding Equipment, Storage Systems, Test Equipment, and Training Services.
HerzESD is committed to providing accurate information and superior customer service, even when it means challenging established but potentially flawed industry practices. We take pride in delivering only correct ESD solutions.
Our success relies on strong partnerships with reliable manufacturers and suppliers. Together with our international partners, we remain vigilant in developing improved solutions for static electricity control, ensuring we can meet evolving industry needs.
