معلومات تفصيلية |
|||
| مادة: | مطاط النتريل | سماكة: | 2mm/3mm |
|---|---|---|---|
| مقاومة السطح: | 10e6-10e9 أوم | تحت مقاومة الطبقة: | 10e3-10e6 أوم |
| مقاس: | 1*10M; 1 * 10 م ؛ 0.6*10M; 0.6 * 10 م ؛ 1.2*10M per roll 1.2 * | لون: | أخضر ، رمادي ، أزرق أو حسب الطلب |
| سطح: | مات/لامع | مقاومة الحجم: | 10e7-10e10 أوم*سم |
| الشحنة الإلكتروستاتيكية الاحتكاك (السطح): | <100v | الشحنة الإلكتروستاتيكية الاحتكاك (موصل): | <50v |
| نموذج: | HZ-30617 | خدمة المعالجة: | قطع |
| طبقة تبديد ثابت: | مقاومة السطح: 107-109OHM | الطبقة الموصلة: | مقاومة السطح: ≤106ohm |
| الحجم الطبيعي: | 1m*10m; 1 م * 10 م ؛ 1.2m*10m 1.2 م * 10 م | ||
| إبراز: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance |
||
منتوج وصف
Factory Direct Customizable Non-Slip Recycled ESD Rubber Mat
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, serving the high-tech industry with premium static control solutions. Our ESD Rubber and PVC mats feature resistance to hot solder and chemicals, with a two-layer construction: a static dissipative top and black conductive bottom.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Sizes | 1m×10m; 1.2m×10m |
| Available Colors | Green/Grey/Blue |
| Surface Finish | Matte/Glossy |
| Surface Resistance | ≤106ohm |
| Volume Resistance | 107-1010 ohm·cm |
Key Features
- Static Dissipation Layer: Surface resistance 107-109ohm | Friction electrostatic charge <100V
- Conductive Layer: Surface resistance ≤106ohm | Friction electrostatic charge <50V
- Volume Resistance: 107-1010 ohm·cm
- Available in rolls or complete ESD work surface mat kits with ground snap and common point ground
- Custom sizing available to meet special requirements

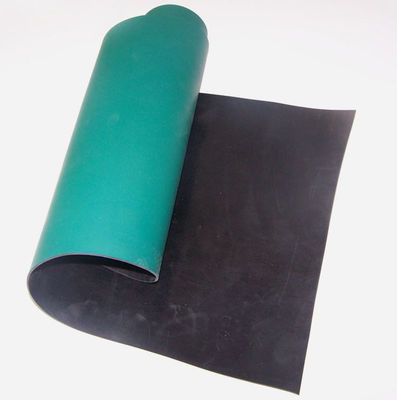

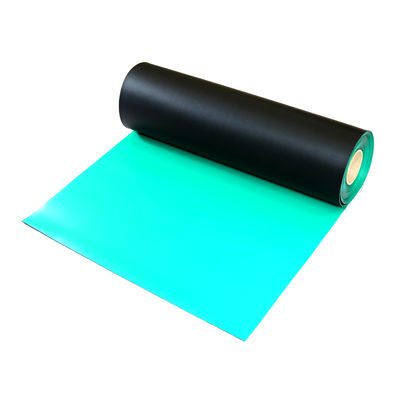

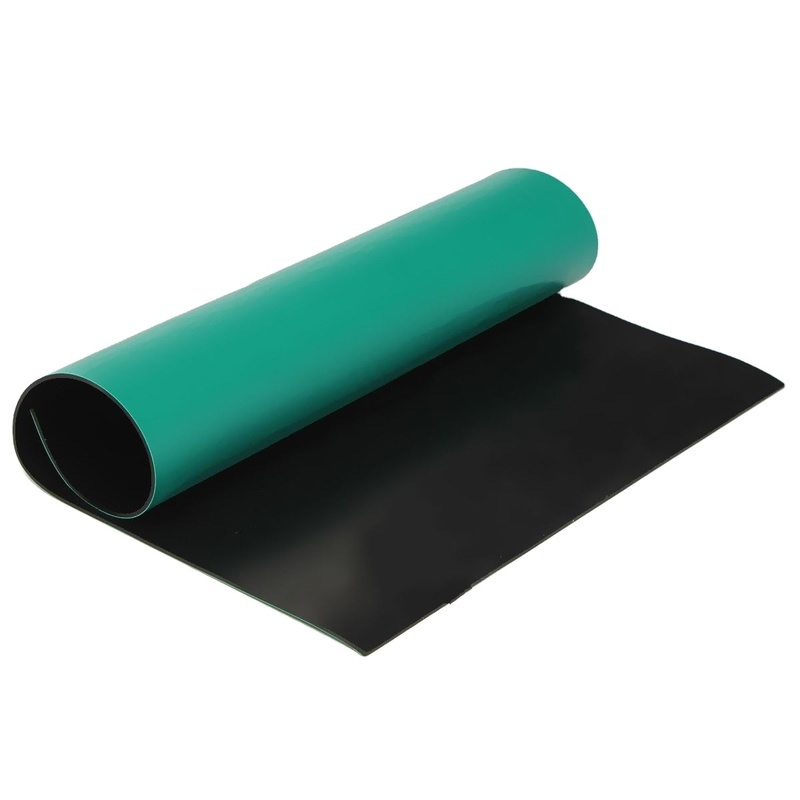

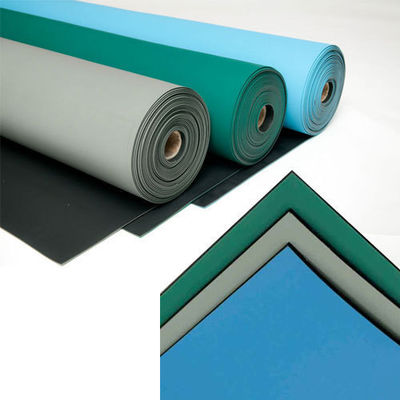

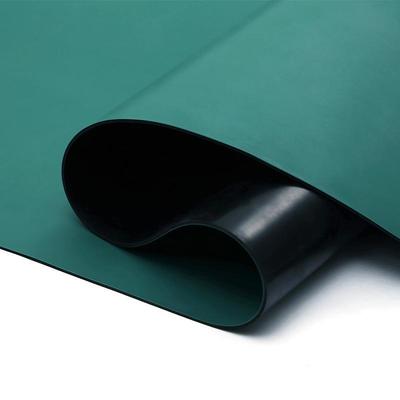

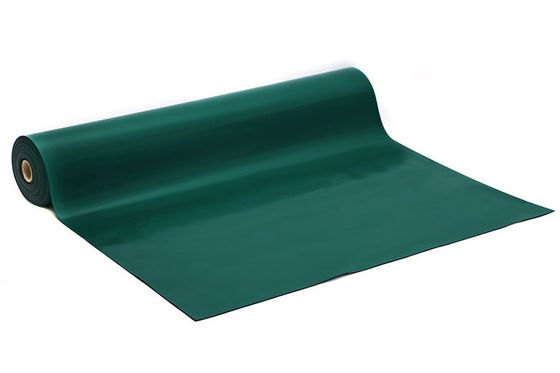

Product Images
Packaging & Shipping
About HerzESD
Shanghai Herzesd Industrial manufactures premium ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. Backed by a dedicated team and rigorous quality control, we deliver long-lasting ESD solutions for industrial applications.
Frequently Asked Questions
Why do you need ESD protection for your production line?
Electronic components sensitive to electrostatic discharge (ESD) can be damaged when exposed to currents or impact energy beyond permitted levels. Humans can generate thousands of volts simply by walking - discharges above 2000-3000V are already beyond the tolerance of many ESD components. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of quality assurance in ESD-sensitive environments.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established industry norms. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing partnerships. As a solid industry partner, we continuously seek improvements and innovative approaches to static electricity control.
