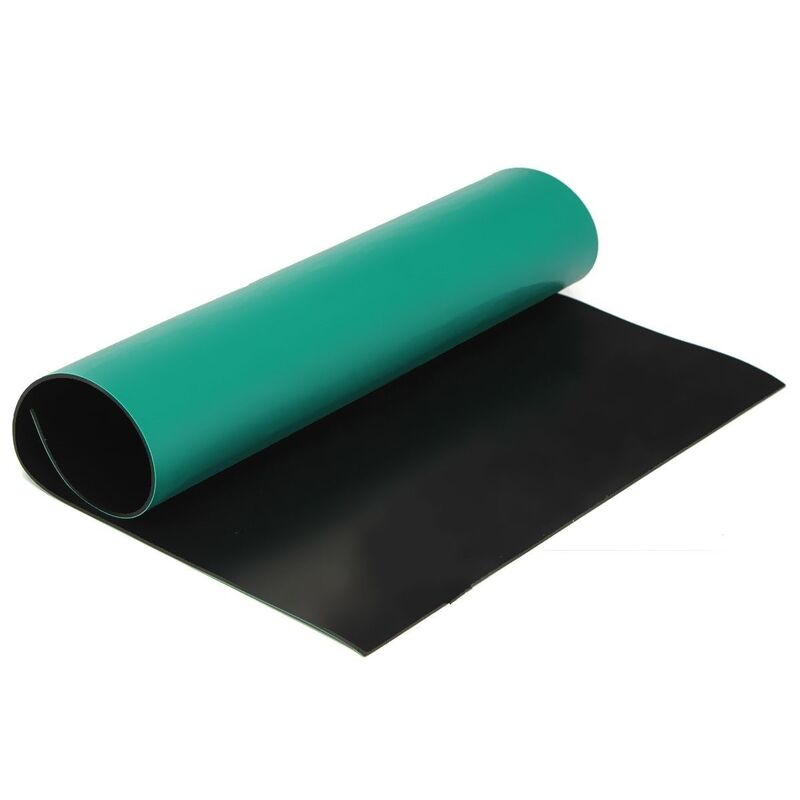

ESD Grounding Rubber Mat Workbench Table Top Antistatic Mat
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Herzesd |
| رقم الموديل: | HZ-30617 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 - 999 متر مربع |
|---|---|
| الأسعار: | 7-15USD/Square Meters |
| تفاصيل التغليف: | أكياس مع كرتون على منصة نقالة |
| شروط الدفع: | تي / تي، باي بال |
| القدرة على العرض: | 50000 مترا مربعا / مترا مربعا في اليوم |
|
معلومات تفصيلية |
|||
| خدمة المعالجة: | قطع | لون: | أخضر ، رمادي ، أزرق أو حسب الطلب |
|---|---|---|---|
| سماكة: | 2mm/3mm | مادة: | ممحاة |
| المقاومة السطحية: | 10e6-10e9 أوم | مقاس: | 1*10M; 1 * 10 م ؛ 0.6*10M; 0.6 * 10 م ؛ 1.2*10M per roll 1.2 * |
| إبراز: | ESD rubber mat for workbench,antistatic table top mat,ESD grounding rubber mat |
||
منتوج وصف
High Quality ESD Matting Natural Rubber Sheet ESD Antistatic Table Mat Floor for Cleanroom

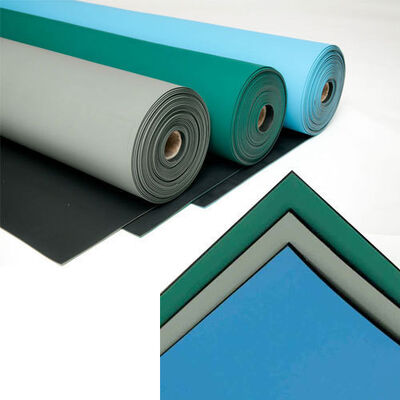

Description: Our ESD Rubber Mat is designed to provide reliable electrostatic discharge protection in sensitive work environments. It features a dual-layer structure with a static dissipative surface and a conductive backing, ensuring effective grounding. Available in multiple colors (green, blue, gray, black) with various thickness options (1.8mm, 2mm, 3mm, this mat is ideal for electronics assembly, repair stations, and clean rooms.
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |

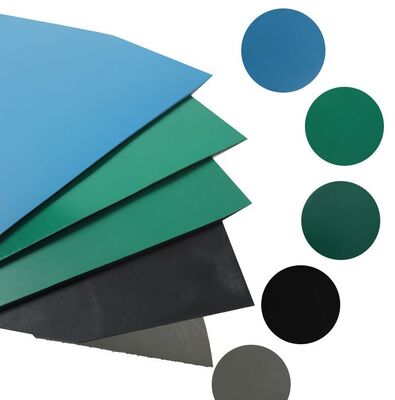

| Color | Green/Grey/ Blue |
| Surface | Matt/Glossy |
| Surface resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm·cm |
Surface layer is a 0.5mm thick static-dissipative layer.
Bottom layer is a 1.5mm conductive layer.
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence.
Our products showcase a fine amalgamation of excellence, quality, innovation, and technology.
A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories.
These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners,we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
