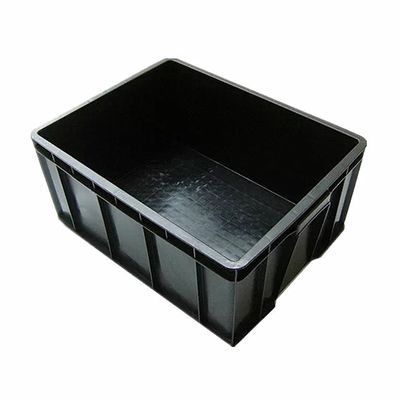

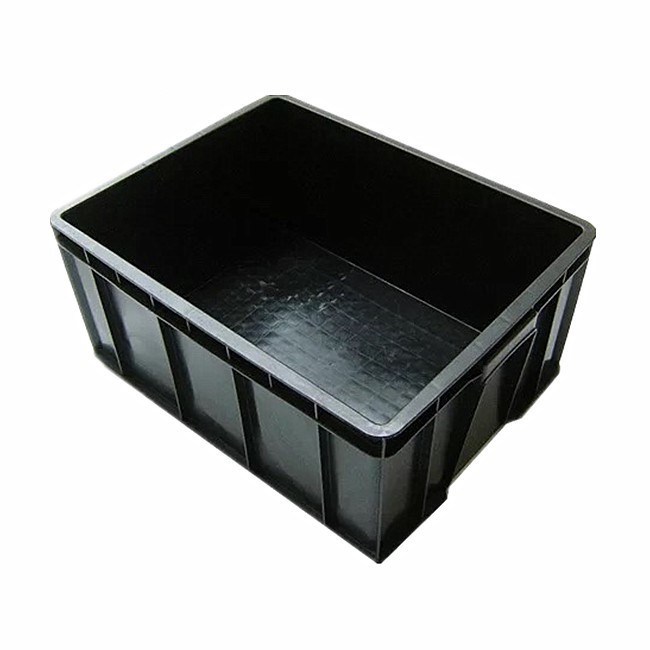

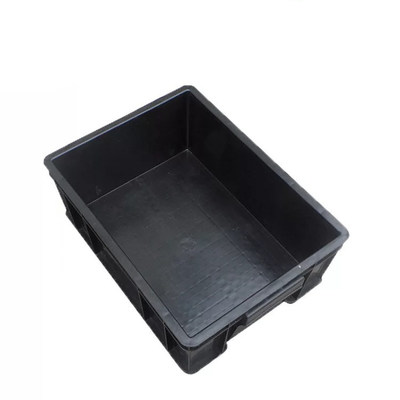

ESD Storage Container Industrial Stackable Antistatic Plastic Box
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Herzesd |
| إصدار الشهادات: | CE, Rosh |
| رقم الموديل: | هرتز-26434 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 قطعة |
|---|---|
| الأسعار: | 3-15USD |
| تفاصيل التغليف: | البليت مع الفيلم |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | تي تي |
| القدرة على العرض: | 1000 PCS/Day |
|
معلومات تفصيلية |
|||
| مادة: | PP البلاستيك | مقاس: | 400 × 300 × 230 ملم |
|---|---|---|---|
| Suraface resisatnce: | 10e4-10e6 أوم 10e6-10e9 أوم | لون: | أسود |
| تطبيق: | لتخزين المكونات الإلكترونية | طَرد: | عادة عن طريق الفيلم أو البليت مع الفيلم |
| موك: | 100pcs | وقت الإنتاج: | 3-5 أيام عمل |
| غطاء: | يمكن أن يكون ، حجم الغطاء: 600 * 400 مم | الاسم: | صندوق تخزين ESD |
منتوج وصف
Durable ESD PP Injection box For Industry
Professional protection for electrostatic-sensitive components (ESDs) in industrial storage, transportation, and handling scenarios.
Permanent Antistatic Protection
Crafted from high-quality antistatic plastic, the container integrates permanent electrostatic dissipation technology—no fading of protective performance over time. It eliminates the risk of static discharge damaging valuable electronics, circuit boards, semiconductors, or precision parts, ensuring component safety at every stage.
Complies with key industry standards:
- IEC 61340-5-1
- ANSI/ESD S20.20
Conductive material allows the charge to move very fast and has a low resistance.
Static dissipative material allows the charge to move quickly but slower than conductive material.
An insulative product has no movement or a very high resistance.
If parts are sensitive to electrical charges they should be stored in a conductive container.
Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
Versatile Applications:
Ideal for any workspace requiring strict static control:
- Electronic assembly lines
- Laboratory testing environments
- Logistics & shipping (protects components during transit)
- Manufacturing facilities (semiconductors, precision instruments)
Durable, reusable, and easy to clean—reduces waste and lowers long-term storage costs.
